FAWDE Series (open type)

  • Product Item：generator-27
  • Diesel generator set
  • Power by FAWDE
    • Inquiry Send Email

    Description


    Diesel generator set technical data

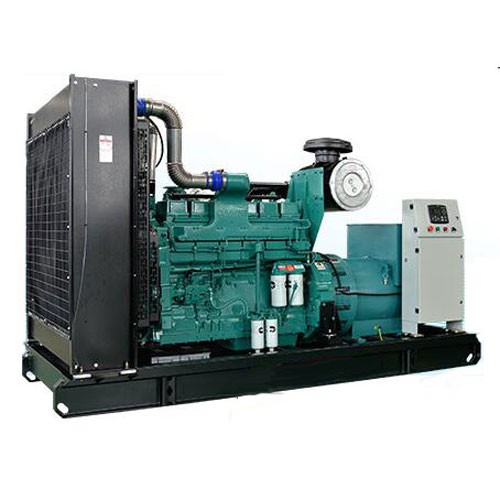

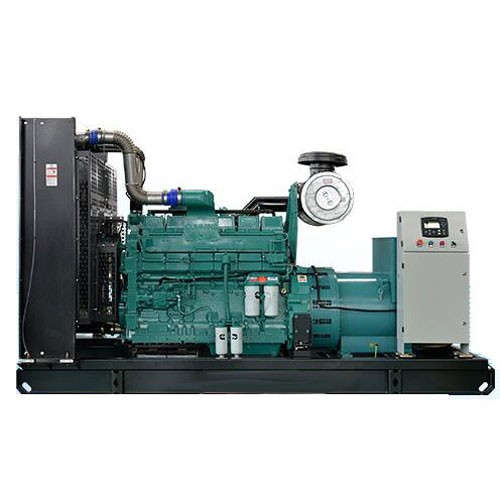

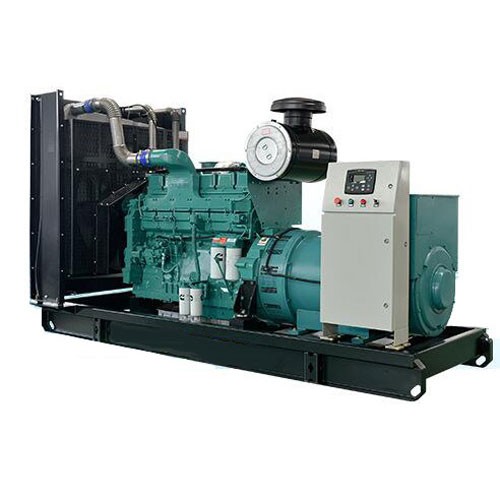

    1.Generator Set

    Integrated structure, base frame with high-strength steel, Genset connected with full suspension shock absorber design, good damping effect and small shake.

    Diesel: choice FAWDE diesel, 24V/12V DC electric start, with tank closed water cycle fan cooling.

    Unit equipped with base daily tank or split tank (above 360KW unit), to meet the unit more than 6 hours of continuous full load.

    Genset attach muffler, corrugated absorber and simple installation materials, configure the base shock absorber, configuration of electric monitoring instrument and diesel operation instrument,

    Genset with MCCB circuit breakers, with short circuit, overload protection function.

    Genset output power to meet the following environmental conditions: Altitude: <1000m Ambient temperature:40°C

    2.Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.

    3.Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.

    4.Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.

    5.Genset emission standards to meet Euro I emission standards

    6.Optional configuration: automatically load the output cabinet, the ATS automatic conversion cabinet and The AMF mains voltage detection module, water (oil) heater, Sound Proof, trailers mobile type etc.

    7.Warranty period: from the date of out of warehouse for one year or 1000 hours (whichever comes first). It Does not include the daily wear and tear parts and human misuse and neglect of maintenance.

    ASG-FAWDE Series:50HZ
    Model Specification 50HZ
    400-230V     		General specifications Alternator Dimensions Weight
    ESP PRP Engine type Consumption 100% Gov MODEL
    KVA KW KVA KW L/H mm kg
    GF16.5 16.5 13.2 15 12 4DW81-23D 5.5 Mechanical ASG164D 1800*700*950 530
    GF22 22 17.6 20 16 40W91-29D 6.8 Mechanical ASG184E 1800*700*950 710
    GF28 28 22 25 20 40W92-35D 8 Mechanical ASG184F 1900*830*1030 720
    GF33 33 26.4 30 24 4DW92-39D-HMS20W 10.6 Electronic ASG184G 1900*830*1030 750
    GF33 33 26.4 30 24 4DW93-42D 10.6 Mechanical ASG184G 1900*830*1030 810
    GF33 33 26.4 30 24 4DX21-4SD 10.6 Mechanical ASG184G 1900*830*1030 810
    GF42 42 34 38 31 4DX2 l -53D-HMS20W 11.2 Electronic ASG184H 2100*900*1100 810
    GF41 41 33 37.5 30 4DX22-50D 10.9 Mechanical ASG184H 2300*900*1150 1550
    GF55 55 44 50 40 4DX22-65D-HMS20W 13.8 Electronic ASG224D 2650*920*1450 1730
    GF55 55 44 50 40 4DX23-65D 13.8 Mechanical ASG224D 2650*920*1450 1760
    GF69 69 55 62.5 50 4DX23-78-JMS20W 18.7 Electronic ASG224F 2700*920*1450 1800
    GF69 69 55 62.5 50 4100/125Z-09D 18.7 Electronic ASG224F 2700*920*1450 2050
    GF83 83 66 75 60 CA4DF2-12D 23.1 Electronic ASG224G 2800*960*1480 2150
    GF110 110 88 100 80 CA6DF2D-14D 26.3 Electronic ASG274C 2900*1000*1480 2350
    GF138 138 110 125 100 CA6DF2-17D 37.9 Electronic ASG274D 3020*1020*1490 2590
    GF165 165 132 150 120 CA60F2-19D 33.9 Electronic ASG274F 3150*1030*1500 3400
    GF206 206 165 187.5 150 CA6DLl-24D 37.6 Electronic ASG274G 3200*1050*1550 3400
    GF248 248 198 225 180 CA6DL2-27D 53.6 Electronic ASG274J 3600*1200*1800 3600
    GF275 275 220 250 200 CA6DL2-30 75.1 Electronic ASG314C 3600*1200*1800 3600
    GF343 343 275 313 250 CA6DM2J-39D 72.8 GAC ASG314D 4200*1330*2060 3650
    GF343 343 275 313 250 CA6DM2-39D 72.8 ECU ASG314D 4200*1330*2060 3650
    GF375 375 297 338 270 CA6DM2J-41D 76.1 GAC ASG314E 4200*1330*2060 3700
    GF375 375 297 338 270 CA6DM2-41D 76.1 ECU ASG314E 4200*1330*2060 3700
    GF413 413 330 375 300 CA6DN1J-45D 86.8 GAC ASG314F 4500*1530*2250 3750
    GF413 413 330 375 300 CA6DNI-45D 85.1 ECU ASG314F 4500*1530*2250 3750

    ASG-FAWDE Series:60HZ
    Model Specification 60HZ
    400-230V     		General specifications Alternator Dimensions Weight
    ESP PRP Engine type Consumption 100% Gov MODEL
    KVA KW KVA KW L/H mm kg
    GF16.5 16.5 13.2 15 12 4DW81-23D 5.5 Mechanical ASG164D 1800*700*950 530
    GF22 22 17.6 20 16 40W91-29D 6.8 Mechanical ASG184E 1800*700*950 710
    GF28 28 22 25 20 40W92-35D 8 Mechanical ASG184F 1900*830*1030 720
    GF33 33 26.4 30 24 4DW92-39D-HMS20W 10.6 Electronic ASG184G 1900*830*1030 750
    GF33 33 26.4 30 24 4DW93-42D 10.6 Mechanical ASG184G 1900*830*1030 810
    GF33 33 26.4 30 24 4DX21-4SD 10.6 Mechanical ASG184G 1900*830*1030 810
    GF42 42 34 38 31 4DX2 l -53D-HMS20W 11.2 Electronic ASG184H 2100*900*1100 810
    GF41 41 33 37.5 30 4DX22-50D 10.9 Mechanical ASG184H 2300*900*1150 1550
    GF55 55 44 50 40 4DX22-65D-HMS20W 13.8 Electronic ASG224D 2650*920*1450 1730
    GF55 55 44 50 40 4DX23-65D 13.8 Mechanical ASG224D 2650*920*1450 1760
    GF69 69 55 62.5 50 4DX23-78-JMS20W 18.7 Electronic ASG224F 2700*920*1450 1800
    GF69 69 55 62.5 50 4100/125Z-09D 18.7 Electronic ASG224F 2700*920*1450 2050
    GF83 83 66 75 60 CA4DF2-12D 23.1 Electronic ASG224G 2800*960*1480 2150
    GF110 110 88 100 80 CA6DF2D-14D 26.3 Electronic ASG274C 2900*1000*1480 2350
    GF138 138 110 125 100 CA6DF2-17D 37.9 Electronic ASG274D 3020*1020*1490 2590
    GF165 165 132 150 120 CA60F2-19D 33.9 Electronic ASG274F 3150*1030*1500 3400
    GF206 206 165 187.5 150 CA6DLl-24D 37.6 Electronic ASG274G 3200*1050*1550 3400
    GF248 248 198 225 180 CA6DL2-27D 53.6 Electronic ASG274J 3600*1200*1800 3600
    GF275 275 220 250 200 CA6DL2-30 75.1 Electronic ASG314C 3600*1200*1800 3600
    GF343 343 275 313 250 CA6DM2J-39D 72.8 GAC ASG314D 4200*1330*2060 3650
    GF343 343 275 313 250 CA6DM2-39D 72.8 ECU ASG314D 4200*1330*2060 3650
    GF375 375 297 338 270 CA6DM2J-41D 76.1 GAC ASG314E 4200*1330*2060 3700
    GF375 375 297 338 270 CA6DM2-41D 76.1 ECU ASG314E 4200*1330*2060 3700
    GF413 413 330 375 300 CA6DN1J-45D 86.8 GAC ASG314F 4500*1530*2250 3750
    GF413 413 330 375 300 CA6DNI-45D 85.1 ECU ASG314F 4500*1530*2250 3750
