Description

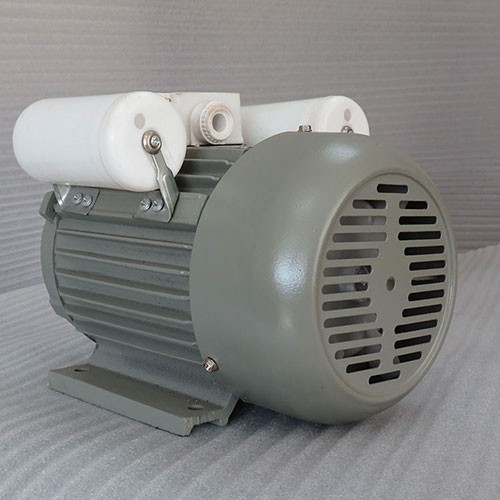

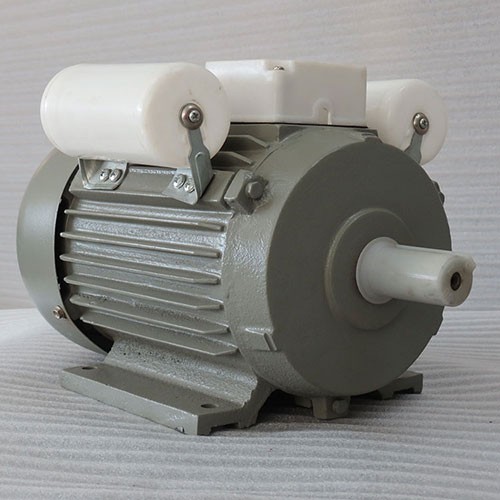

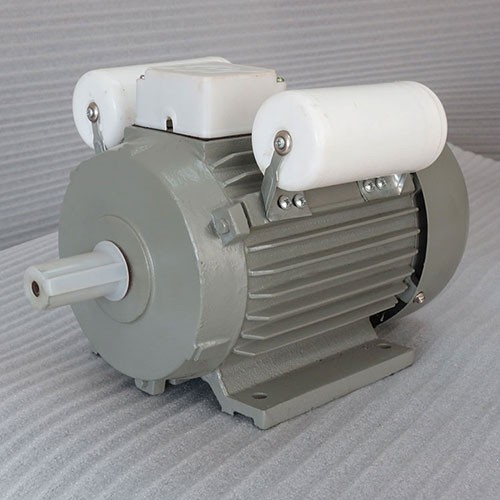

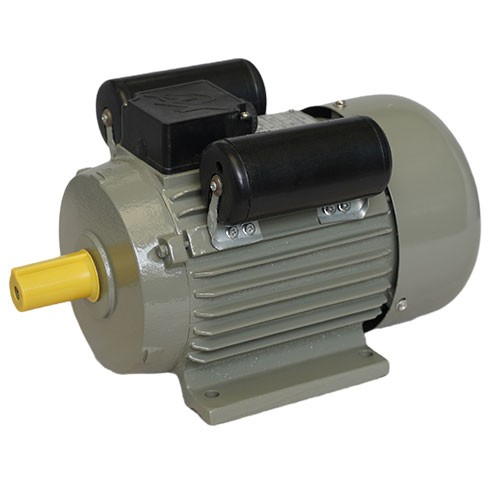

YL SERIES SINGLE-PHASE DUAL CAPACITOR START & RUN
ASYNCHRONOUS CAST IRON HOUSING MOTOR
FEATURE
YL Series single phase dual - capacitor induction motor is designed and manufactured in according with national standard, newly developed by our company with low noise, compact dimension, light weight,easy maintenance,etc. These motors are widely used on air compressor, pumps, fans, refrigeration, medical instruments small-size machines,etc.Especially for occasion where only single-phase power supply is available.
YL Series single phase dual - capacitor induction motor realized the sane base and the sane capacity for both single phase and three phase motor. This brought greatly convenience to the Equipment factory using the three-phase motor as the power originally.The user can adopt single-phase or three-phase motor in the same equipment. And provides the possibility of exchange in the vast area there is no three-phase power.
OPERATING CONDITIONS
Ambient temperature:-15℃≤θ≦40℃
Above sea level:not exceed 1000m
Rated voltage:±5%
Voltage:220V/50Hz
Protection:IP44/IP55
Insulation Class:B/F
Cooling method:IC0141
Duty:continuous(S1)
