Description

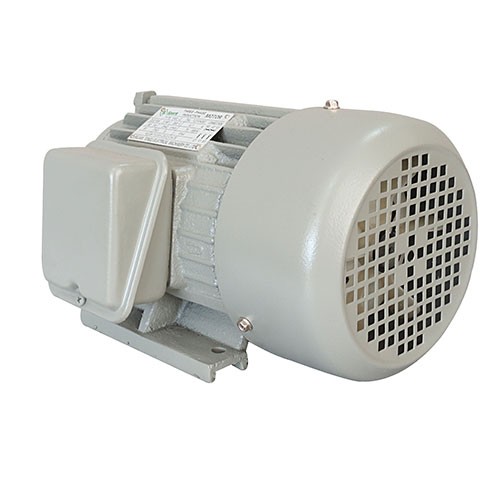

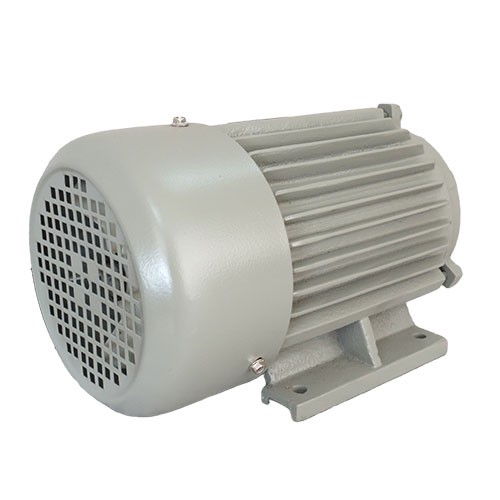

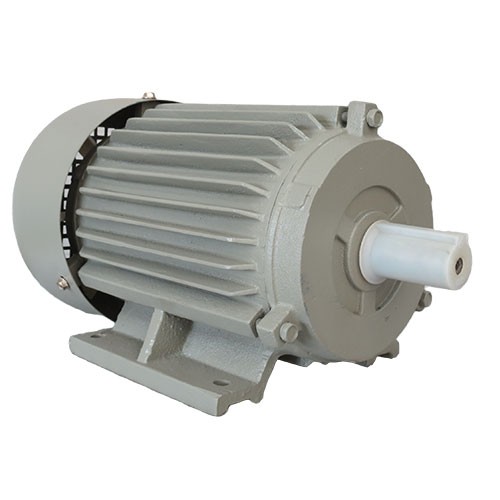

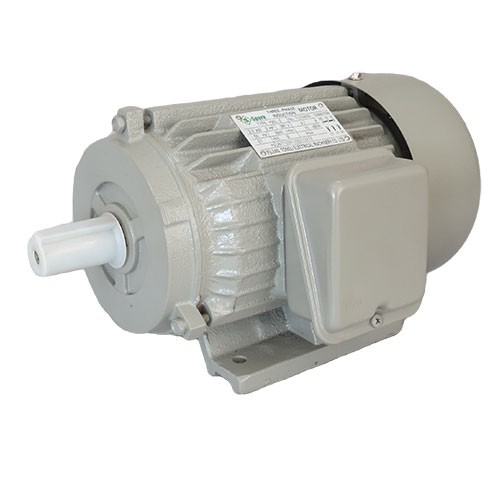

Y SERIES THREE-PHASE
ASYNCHRONOUS CAST IRON HOUSING MOTOR
APPLICATIONS AND INSTALLATION
Y Series electric motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor, newly designed in conformity with the relevant rules of IEC Standards, have excellent performance, like high efficiency, less consumption, high starting torque, low noise, little vibration, reliable output and easy maintenance,etc.
This motor is widely used in many places where do not exist combustible, explosive or corrosive gas, without any special requirements, typically using for machine tools, pumps, fans, transport machinery, mixer agriculture machinery and food processing machines,etc.
OPERATING CONDITIONS
Ambient temperature:-15℃≤θ≦40℃
Protection:IP44/IP54/IP55
Insulation Class:B/F/H
Voltage on request:220/380V,380/660V,220/340V,220/440V,440/415V
Frequency:50HZ/60HZ
Duty:S1(continuous)
Above sea level:not exceed 1000m
Cooling method:IC0141
Connection:Star~connection (Y) for up to 4HP
Delta-connection ( ) for 5HP and above.
