  • YC series single phase capacitor start asynchronous motor
  • YC series single phase capacitor start asynchronous motor
  • YC series single phase capacitor start asynchronous motor
  • YC series single phase capacitor start asynchronous motor
YC series single phase capacitor start asynchronous motor YC series single phase capacitor start asynchronous motor YC series single phase capacitor start asynchronous motor YC series single phase capacitor start asynchronous motor

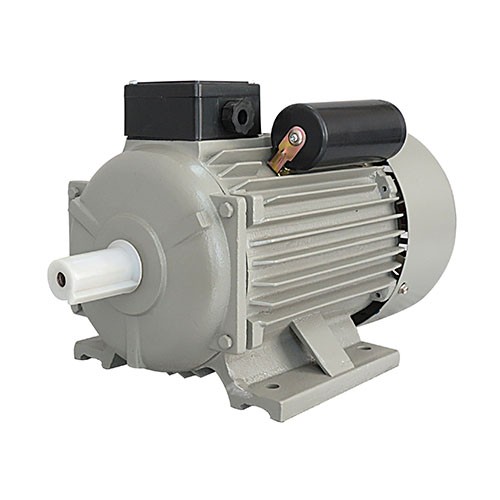

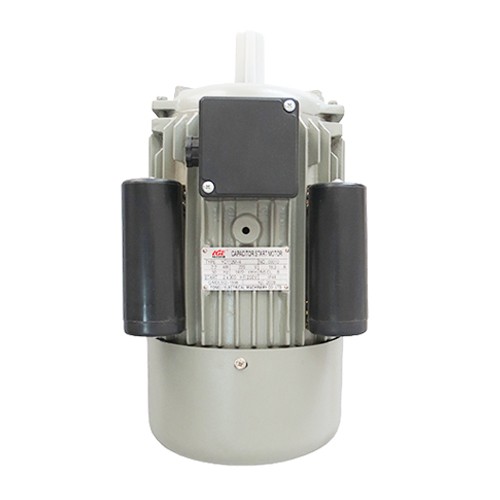

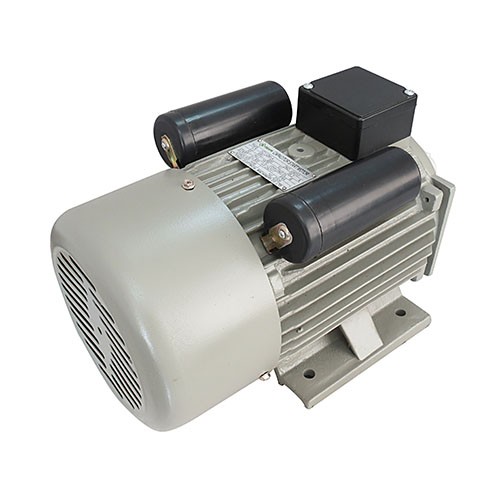

YC series single phase capacitor start asynchronous motor

  • Product Item:alternator-16
  • Housing : cast iron
  • Voltage/Frequency : 220V/50Hz
  • Efficiency : IE1 / IE2
  • Insulation Class : Class B or F
  • single phase motor  , YC motor  , electric motor  , 2HP  , 1500rpm  , 4poles  , 1phase  , capacitor start  , capacitor run  , air compressor motor
    Inquiry Send Email

    Description

    YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available. YC series motor are of IP44 totally enclosed fan cooling type, it has concentrated the advantages of high starting torque, smooth running, low temperature rising, low noise and greater overload performance. The designation number and nominative valves are all in conformity with IEC standards.


    Ambient temperature: from -15℃ to 40℃
    Above sea level: not exceed 1000m
    Voltage/frequency: 220V/50Hz
    Protection class: IP44/IP54
    Insulation class: B/F
    Cooling method: ICO141
    Duty: continuous(S1)
