  • YCL series single phase capacitor start&run asynchronous motor
  • YCL series single phase capacitor start&run asynchronous motor
  • YCL series single phase capacitor start&run asynchronous motor
  • YCL series single phase capacitor start&run asynchronous motor
YCL series single phase capacitor start&run asynchronous motor YCL series single phase capacitor start&run asynchronous motor YCL series single phase capacitor start&run asynchronous motor YCL series single phase capacitor start&run asynchronous motor

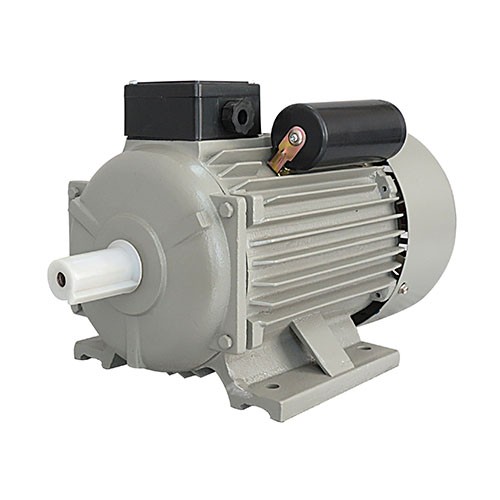

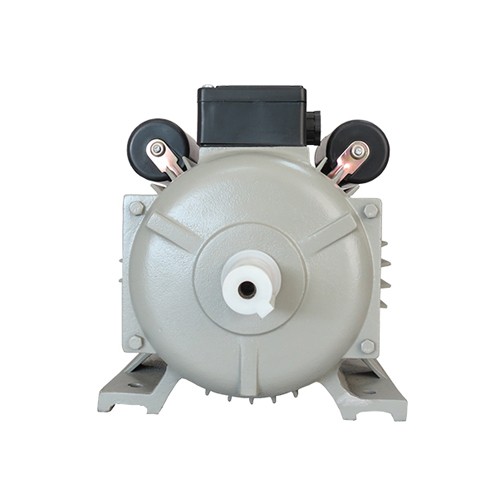

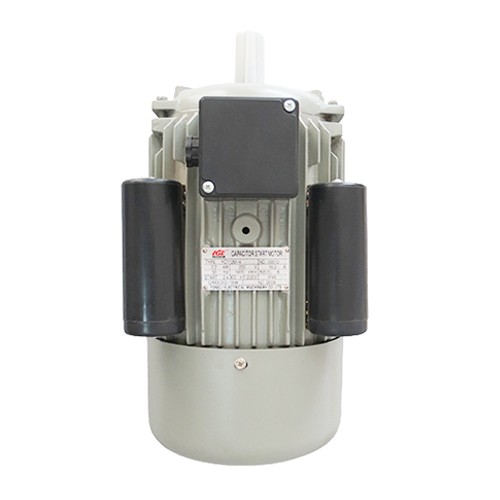

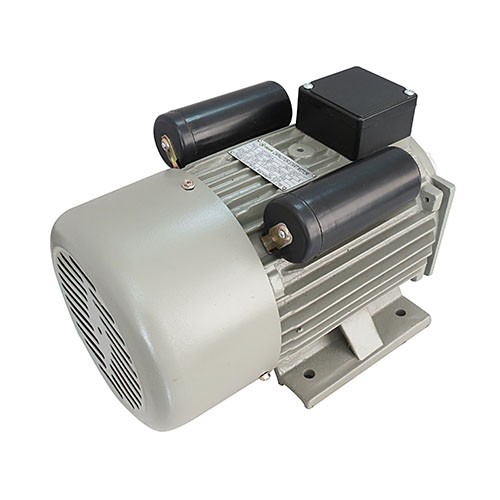

YCL series single phase capacitor start&run asynchronous motor

  • Product Item:alternator-15
  • Housing : cast iron
  • Voltage/Frequency : 220V/50Hz
  • Efficiency : IE1 / IE2
  • Insulation Class : Class B or F
  • YCL series single phase capacitor startrun asynchronous motor
    Inquiry Send Email

    Description


    YCL SERIES SINGLE-PHASE CAPACITOR START & RUN

    ASYNCHRONOUS CAST IRON HOUSING MOTOR
    FEATURE
    YCL Series heavy-duty capacitor start and run, single phase induction motor has many good characteristics such as lower noise, lower temperature raising and starting current, higher starting torque,reliable operation, easy maintenance and pretty appearance. They all meet the relative rules of IEC standard. YCL Series motor is similar to YC series in nice appearance. Comparing with the same output YC series motors, YCL series temperature raising reduce 8.74K on average, efficiency improve 4.21 percent, power factor raise 0.16.
    OPERATING CONDITIONS
    Ambient temperature:-15℃≤θ≦40℃
    Above sea level:not exceed 1000m
    Rated voltage:±5%
    Voltage:220V/50Hz
    Protection:IP44/IP55
    Insulation Class:B/F
    Cooling method:IC0141
    Duty:continuous(S1)










    Inquiry Us





    Related Products

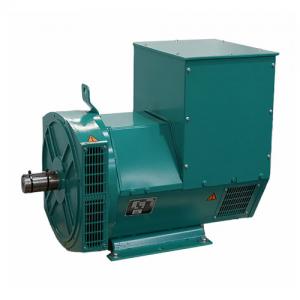

    ASG Brushless Synchronous AC Alternators
