Description

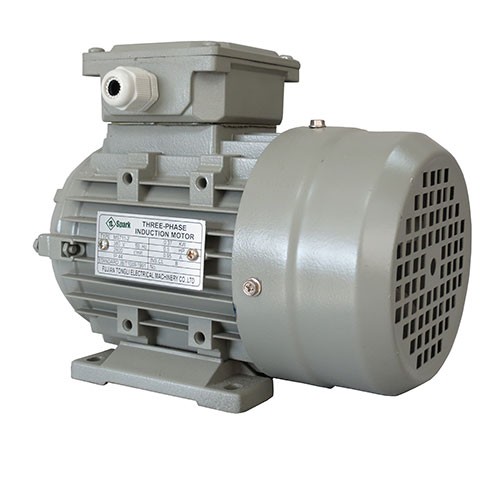

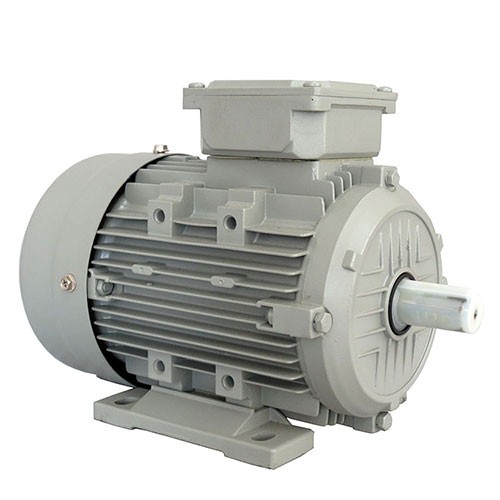

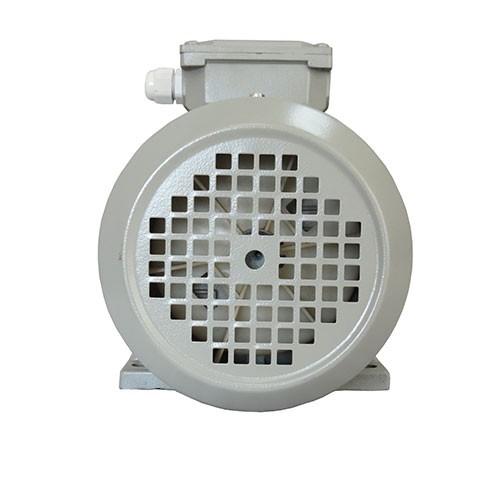

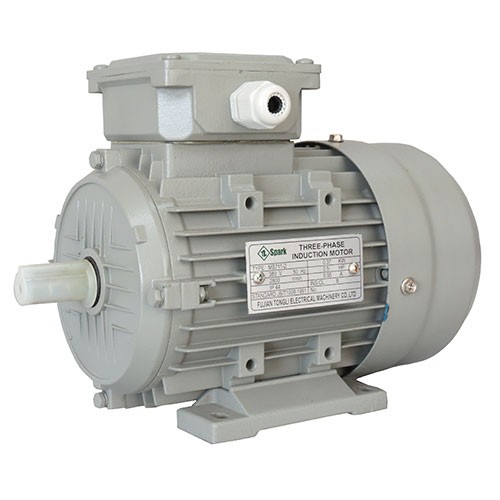

MS SERIES THREE-PHASE
ASYNCHRONOUS INDUCTION MOTOR
FEATURE
MS series three-phase asynchronous aluminum housing motor,with latest design in entirety are made of selected quality materials and conform to the IEC standard.
MS motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently while with low noises, little vibration and light weight and simple construction. These series motors can be used for general driving, like air-compressor, pump, fan, small machines, etc.
OPERATING CONDITIONS
Ambient temperature:-15℃≤θ≦40℃
Protection: IP54/IP55
Insulation Class:F/H
Rated Voltage: 380V or any voltage between 220-760V
Frequency: 50HZ/60HZ
Duty: S1(continuous)
Above sea level:not exceed 1000m
Cooling method: IC0141
Connection:Star~connection (Y) for up to 4HP
Delta-connection ( )for 5HP and above.
