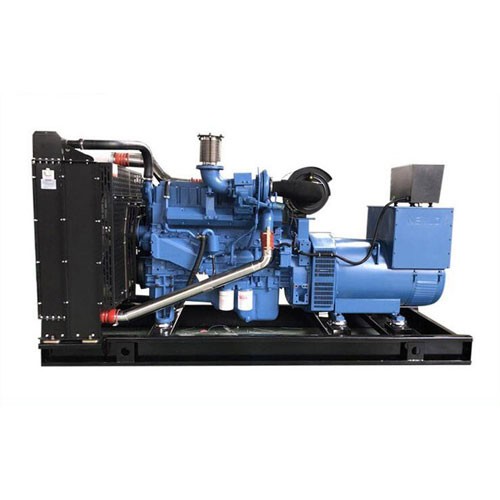

YUCHAI Series (open type) YUCHAI Series (open type)

YUCHAI Series (open type)

  • Product Item:generator-21
  • Diesel generator set
  • Power by Yuchai
  • Inquiry Send Email

    Description


    Diesel generator set technical data

    1.Generator Set

    Integrated structure, base frame with high-strength steel, Genset connected with full suspension shock absorber design, good damping effect and small shake.

    Diesel: choice YUCHAI diesel, 24V/12V DC electric start, with tank closed water cycle fan cooling.

    Unit equipped with base daily tank or split tank (above 360KW unit), to meet the unit more than 6 hours of continuous full load.

    Genset attach muffler, corrugated absorber and simple installation materials, configure the base shock absorber, configuration of electric monitoring instrument and diesel operation instrument,

    Genset with MCCB circuit breakers, with short circuit, overload protection function.

    Genset output power to meet the following environmental conditions: Altitude: <1000m Ambient temperature:40°C

    2.Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.

    3.Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.

    4.Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.

    5.Genset emission standards to meet Euro I emission standards

    6.Optional configuration: automatically load the output cabinet, the ATS automatic conversion cabinet and The AMF mains voltage detection module, water (oil) heater, Sound Proof, trailers mobile type etc.

    7.Warranty period: from the date of out of warehouse for one year or 1000 hours (whichever comes first). It Does not include the daily wear and tear parts and human misuse and neglect of maintenance.


    ASG-YUCHAI Series:50HZ
    Model Specification 50HZ
    400-230V
    General specifications Alternator Dimensions Weight
    ESP PRP Engine type Consumption 100% Gov MODEL mm kg
    KVA KW KVA KW L/H
    GYC17.5 17.5 14 15 12 YC2108D 6 Mechanical ASG184E 2050*910*1150 800
    GYC20 20 16 18 14 YC2108D 8 Mechanical ASG184G 2150*910*1150 980
    GYC25 25 20 22 18 YC2115D 10.2 Mechanical ASG184J 2150*910*1150 1250
    GYC27 27 22 25 20 YCD3D11D 13.9 Mechanical ASG224D 2300*1000*1150 1350
    GYC34 34 27 31 25 YCD3D11D 10.9 Mechanical ASG224C 2300*1000*1150 1300
    GYC41 41 33 37 30 YC4D55-D10 14.6 Mechanical ASG224E 2300*1000*1150 1420
    GYC44 44 35 40 32 YC4D60-D21 15.9 Mechanical ASG224F 2300*1000*1150 1450
    GYC55 55 44 50 40 YC4D85Z-D20 18.6 Mechanical ASG224G 2650*920*1450 1500
    GYC70 70 55 63 50 YC4D75Z-D20 24.1 Mechanical ASG274C 2700*1000*1450 1660
    GYC83 83 66 75 60 YC6B100-D10 27.3 Mechanical ASG274D 2700*1000*1450 1700
    GYC88 88 70 80 64 YC6B100-D20 31.8 Mechanical ASG274E 3100*1030*1500 1800
    GYC96 96 77 87 70 YC6B115Z-D20 33.6 Mechanical ASG274F 3100*1030*1500 1910
    GYC110 110 88 100 80 YC6B115Z-D20 35.4 Mechanical ASG274F 3100*1030*1500 1910
    GYC125 124 99 113 90 YC6B135Z-D20 35.7 Mechanical ASG274F 3100*1030*1500 1910
    GYC137 138 110 125 100 YC6B155L-D20 39.4 Mechanical ASG274G 3200*1050*1550 2050
    GYC151 151 121 137 110 YC6B155L-D20 42.6 Mechanical ASG274H 3200*1050*1550 2100
    GYC165 165 132 150 120 YC6A190L-D20 48.5 Mechanical ASG274J 3600*1200*1800 2250
    GYC176 176 141 160 128 YC6A190L-D20 60.7 Mechanical ASG274K 3600*1200*1800 2430
    GYC220 220 176 200 160 YC6M260L-D20 72.6 Mechanical ASG314E 4200*1330*2060 3460
    GYC250 250 200 225 180 YC6M260L-D20 72.6 Mechanical ASG314E 4200*1330*2060 3500
    GYC275 275 220 250 200 YC6M320L-D20 83 Mechanical ASG314F 4500*1530*2250 3550
    GYC300 300 240 275 220 YC6M320L-D20 85.3 Mechanical ASG314F 4500*1530*2250 3550
    GYC330 330 264 300 240 YC6MK390L-D20 95.1 Mechanical ASG314F 4500*1530*2250 3550
    GYC413 413 330 375 300 YC6T500L-D20 103.6 Mechanical ASG354C 4600*1530*2300 4780
    GYC437 440 352 400 320 YC6T500L-D20 114 Mechanical ASG354C 4600*1530*2300 4780
    GYC500 495 396 450 360 YC6T550L-D20 120.9 Mechanical ASG354D 4800*1730*2400 4800
    GYC550 550 440 500 400 YC6T600L-D20 134.4 Mechanical ASG354E 4800*1730*2400 4780
    GYC825 825 660 750 600 YC6C1020L-D20 144.7 Mechanical ASG354F 4800*1730*2400 4800

    ASG-YUCHAI Series:60HZ
    Model Specification 60HZ
    400-230V
    General specifications Alternator Dimensions Weight
    ESP PRP Engine type Consumption100% Gov MODEL mm kg
    KVA KW KVA KW L/H
    GYC17.5 17.5 14 15 12 YC2108D 6 Mechanical ASG184E 2050*910*1150 800
    GYC20 20 16 18 14 YC2108D 8 Mechanical ASG184G 2150*910*1150 980
    GYC25 25 20 22 18 YC2115D 10.2 Mechanical ASG184J 2150*910*1150 1250
    GYC27 27 22 25 20 YCD3D11D 13.9 Mechanical ASG224D 2300*1000*1150 1350
    GYC34 34 27 31 25 YCD3D11D 10.9 Mechanical ASG224C 2300*1000*1150 1300
    GYC41 41 33 37 30 YC4D55-D10 14.6 Mechanical ASG224E 2300*1000*1150 1420
    GYC44 44 35 40 32 YC4D60-D21 15.9 Mechanical ASG224F 2300*1000*1150 1450
    GYC55 55 44 50 40 YC4D85Z-D20 18.6 Mechanical ASG224G 2650*920*1450 1500
    GYC70 70 55 63 50 YC4D75Z-D20 24.1 Mechanical ASG274C 2700*1000*1450 1660
    GYC83 83 66 75 60 YC6B100-D10 27.3 Mechanical ASG274D 2700*1000*1450 1700
    GYC88 88 70 80 64 YC6B100-D20 31.8 Mechanical ASG274E 3100*1030*1500 1800
    GYC96 96 77 87 70 YC6B115Z-D20 33.6 Mechanical ASG274F 3100*1030*1500 1910
    GYC110 110 88 100 80 YC6B115Z-D20 35.4 Mechanical ASG274F 3100*1030*1500 1910
    GYC125 124 99 113 90 YC6B135Z-D20 35.7 Mechanical ASG274F 3100*1030*1500 1910
    GYC137 138 110 125 100 YC6B155L-D20 39.4 Mechanical ASG274G 3200*1050*1550 2050
    GYC151 151 121 137 110 YC6B155L-D20 42.6 Mechanical ASG274H 3200*1050*1550 2100
    GYC165 165 132 150 120 YC6A190L-D20 48.5 Mechanical ASG274J 3600*1200*1800 2250
    GYC176 176 141 160 128 YC6A190L-D20 60.7 Mechanical ASG274K 3600*1200*1800 2430
    GYC220 220 176 200 160 YC6M260L-D20 72.6 Mechanical ASG314E 4200*1330*2060 3460
    GYC250 250 200 225 180 YC6M260L-D20 72.6 Mechanical ASG314E 4200*1330*2060 3500
    GYC275 275 220 250 200 YC6M320L-D20 83 Mechanical ASG314F 4500*1530*2250 3550
    GYC300 300 240 275 220 YC6M320L-D20 85.3 Mechanical ASG314F 4500*1530*2250 3550
    GYC330 330 264 300 240 YC6MK390L-D20 95.1 Mechanical ASG314F 4500*1530*2250 3550
    GYC413 413 330 375 300 YC6T500L-D20 103.6 Mechanical ASG354C 4600*1530*2300 4780
    GYC437 440 352 400 320 YC6T500L-D20 114 Mechanical ASG354C 4600*1530*2300 4780
    GYC500 495 396 450 360 YC6T550L-D20 120.9 Mechanical ASG354D 4800*1730*2400 4800
    GYC550 550 440 500 400 YC6T600L-D20 134.4 Mechanical ASG354E 4800*1730*2400 4780
    GYC825 825 660 750 600 YC6C1020L-D20 144.7 Mechanical ASG354F 4800*1730*2400 4800
