Description

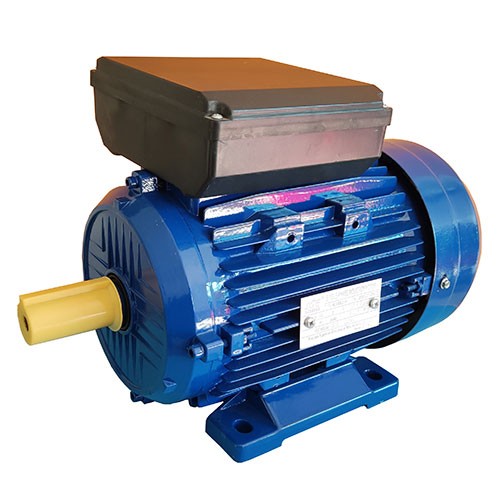

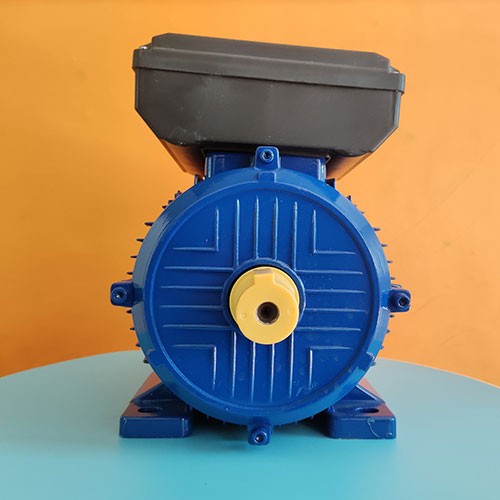

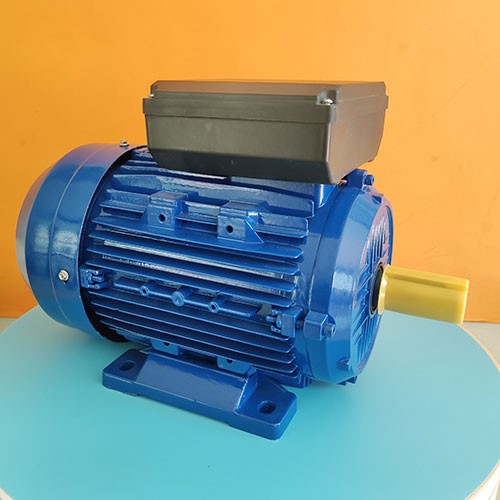

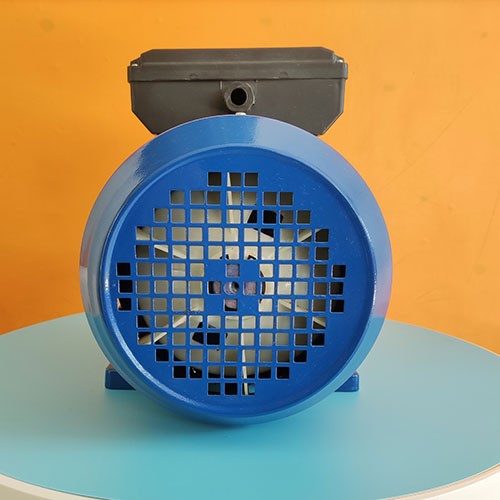

ML SERIES SINGLE-PHASE CAPACITOR START & RUN
ASYNCHRONOUS INDUCTION MOTOR
FEATURE
ML Series Aluminum housing single-phase capacitor start and run asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to the IEC standard. ML Series have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, light weight and simple construction. The compositive performance is good, the multiple of starting torque is 1.8~2.5. These series motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air-compressors, pumps,fans,medical apparatus and instruments,and many other small machines.
OPERATING CONDITIONS
Ambient temperature:-15℃≤θ≦40℃
Protection:IP54/IP55
Insulation Class:F/H
Rated Voltage:220V or any voltage between 110-240V
Frequency:50HZ/60HZ
Duty:S1(continuous)
Above sea level:not exceed 1000m
Cooling method:IC0141
