  5. RICARDO Series (silent type)
  • RICARDO Series (silent type)
  • RICARDO Series (silent type)
  • RICARDO Series (silent type)
RICARDO Series (silent type) RICARDO Series (silent type) RICARDO Series (silent type)

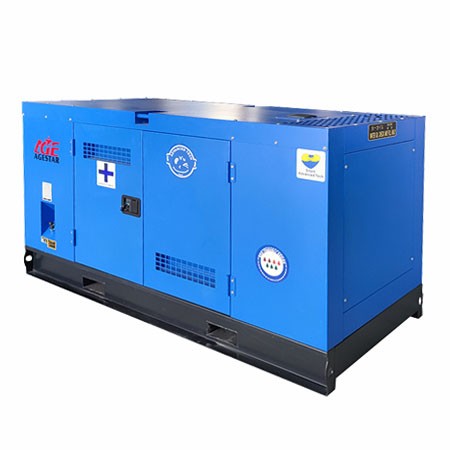

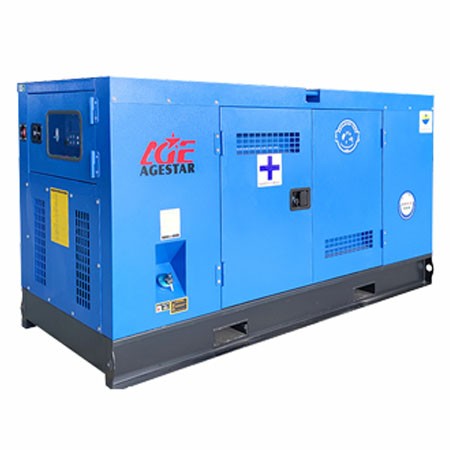

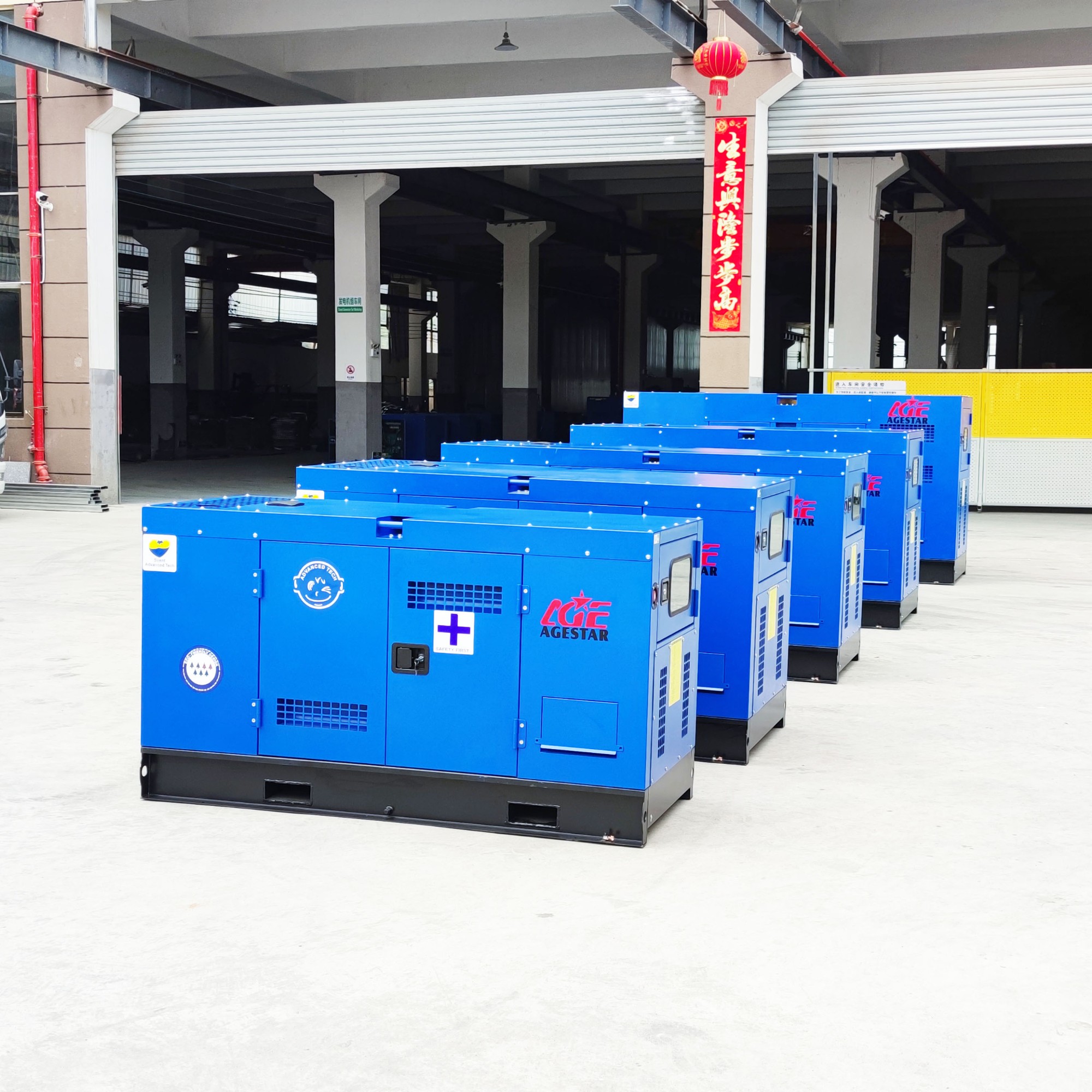

RICARDO Series (silent type)

  • Product Item:generator-23
  • Diesel generator set
  • Power by Ricardo
  • Hot-sale-Ricardo-diesel-generator-set-home-use
    Inquiry Send Email

    Description

    Diesel generator set technical data

    1.Generator Set

    Integrated structure, base frame with high-strength steel, Genset connected with full suspension shock absorber design, good damping effect and small shake.

    Diesel: choice Ricardo diesel, 24V/12V DC electric start, with tank closed water cycle fan cooling.

    Unit equipped with base daily tank or split tank (above 360KW unit), to meet the unit more than 6 hours of continuous full load.

    Genset attach muffler, corrugated absorber and simple installation materials, configure the base shock absorber, configuration of electric monitoring instrument and diesel operation instrument,

    Genset with MCCB circuit breakers, with short circuit, overload protection function.

    Genset output power to meet the following environmental conditions: Altitude: <1000m Ambient temperature:40°C

    2.Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.

    3.Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.

    4.Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.

    5.Genset emission standards to meet Euro I emission standards

    6.Optional configuration: automatically load the output cabinet, the ATS automatic conversion cabinet and The AMF mains voltage detection module, water (oil) heater, Sound Proof, trailers mobile type etc.

    7.Warranty period: from the date of out of warehouse for one year or 1000 hours (whichever comes first). It Does not include the daily wear and tear parts and human misuse and neglect of maintenance.

    ASG-Ricardo Series:50HZ
    Model Specification 50HZ
    400-230V
    General specifications Alternator Dimensions Weight/kg
    ESP PRP Engine type Consumption 100% Gov
    KVA KW KVA KW L/H
    GR11(S) 11 9 10 8 Y480BD 1.81 Mechanical ASG164B 2050*850*1150 660
    GR14(S) 14 11 13 10 Y480BD 1.81 Mechanical ASG164C 2050*850*1150 680
    GR17(S) 17 13 15 12 Y480BD 1.81 Mechanical ASG164D 2050*850*1150 695
    GR21(S) 21 17 19 15 Y485BD 3.61 Mechanical ASG184ES 2030*9000*1150 780
    GR25(S) 25 20 23 18 Y485BZD 3.61 Mechanical ASG184E 2030*9000*1150 905
    GR28(S) 28 22 25 20 Y485BZD 3.61 Mechanical ASG184F 2030*9000*1150 935
    GR28(S) 28 22 25 20 Y485BZLD 3.85 Mechanical ASG184F 2030*9000*1150 955
    GR33(S) 33 26 30 24 Y485BZLD 3.85 Mechanical ASG184G 2280*1000*1250 990
    GR28(S) 28 22 25 20 N4100DS-26 3.85 Mechanical ASG184F 2030*9000*1150 955
    GR33(S) 33 26 30 24 N4100DS-30 3.85 Mechanical ASG184G 2280*1000*1250 990
    GR41(S) 41 33 38 30 N41050S-38 3.85 Mechanical ASG184H 2290*1030*1260 1064
    GR55(S) 55 44 50 40 N4105DS-46 3.85 Mechanical ASG224D 2290*1050*1280 1179
    GR55(S) 55 44 50 40 N4105ZD 3.85 Mechanical ASG224D 2290*1050*1280 1179
    GR69(S) 69 55 63 50 N4105ZD 4.33 Electrical ASG224E 2600*1000*1250 1400
    GR69(S) 69 55 63 50 N4105ZLD 4.33 Mechanical ASG224E 2600*1000*1250 1400
    GR83(S) 83 66 75 60 N4105ZLD 4.95 Electrical ASG224F 2600*1000*1250 1420
    GR55(S) 55 44 50 40 R4105ZD1 4.95 Mechanical ASG224D 2290*1050*1280 1179
    GR69(S) 69 55 63 50 R4105ZD1 4.85 Electrical ASG224E 2600*1000*1250 1400
    GR69(S) 69 55 63 50 R4105ZLDS1 4.85 Mechanical ASG224E 2600*1000*1250 1400
    GR83(S) 83 66 75 60 R4105ZLDS1 4.95 Electrical ASG224F 2600*1000*1250 1420
    GR69(S) 69 55 63 50 R4105BZDS1 4.85 Mechanical ASG224E 2600*1000*1250 1400
    GR83(S) 83 66 75 60 R4105BZLDS1 4.95 Electrical ASG224F 2600*1000*1250 1420
    GR88(S) 88 70 80 64 R6105ZDS1 4.95 Electrical ASG224G 2600*1000*1250 1420
    GR103(S) 103 83 94 75 R6105ZDS1 7 Electrical ASG274C 2900*1080*1650 1700
    GR124(S) 124 99 113 90 R6105ZLDS1 6.75 Electrical ASG274D 2930*1090*1680 1800
    GR138(S) 138 110 125 100 R6 l 05AZLDS1 6.75 Electrical ASG274E 3120*1130*1750 1752
    GR165(S) 165 132 150 120 R6105BZLDS1 7 Electrical ASG274F 3120*1130*1750 1845
    GR206(S) 206 165 188 150 R6110ZLDS 7.41 Electrical ASG274G 3190*1130*1780 1965
    GR220(S) 220 176 200 160 6126-68D 7.8 Electrical ASG274H 3300*1130*1800 2016
    GR248(S) 248 198 225 180 6126-42D 8.1 Electrical ASG274J 3300*1240*1800 2400
    GR275(S) 275 220 250 200 6126-260D 8.9 Electrical ASG274K 3600*1240*1800 2450
    GR303(S) 303 242 275 220 6126-275D 9.3 Electrical ASG314C 3900*1240*1800 2500
    GR358(S) 358 286 325 260 STD12D-308 10.6 Electrical ASG314D 4400*1450*2250 2750

    ASG-Ricardo Series:60HZ
    Model Specification 60HZ
    400-230V
    General specifications Alternator Dimensions Weight/kg
    ESP PRP Engine type Consumption 100% Gov
    KVA KW KVA KW L/H
    GR11(S) 11 9 10 8 Y480BD 1.81 Mechanical ASG164B 2050*850*1150 660
    GR14(S) 14 11 13 10 Y480BD 1.81 Mechanical ASG164C 2050*850*1150 680
    GR17(S) 17 13 15 12 Y480BD 1.81 Mechanical ASG164D 2050*850*1150 695
    GR21(S) 21 16 19 15 Y485BD 3.61 Mechanical ASG184ES 2030*9000*1150 780
    GR25(S) 25 20 23 18 Y485BZD 3.61 Mechanical ASG184E 2030*9000*1150 905
    GR28(S) 28 22 25 20 Y485BZD 3.61 Mechanical ASG184F 2030*9000*1150 935
    GR28(S) 28 22 25 20 Y485BZLD 3.85 Mechanical ASG184F 2030*9000*1150 955
    GR33(S) 33 26 30 24 Y485BZLD 3.85 Mechanical ASG184G 2280*1000*1250 990
    GR28(S) 28 22 25 20 N4100DS-26 3.85 Mechanical ASG184F 2030*9000*1150 955
    GR33(S) 33 26 30 24 N4100DS-30 3.85 Mechanical ASG184G 2280*1000*1250 990
    GR41(S) 41 33 38 30 N41050S-38 3.85 Mechanical ASG184H 2290*1030*1260 1064
    GR55(S) 55 44 50 40 N4105DS-46 3.85 Mechanical ASG224D 2290*1050*1280 1179
    GR55(S) 55 44 50 40 N4105ZD 3.85 Mechanical ASG224D 2290*1050*1280 1179
    GR69(S) 69 55 62 50 N4105ZD 4.33 Electrical ASG224E 2600*1000*1250 1400
    GR69(S) 69 55 62 50 N4105ZLD 4.33 Mechanical ASG224E 2600*1000*1250 1400
    GR83(S) 83 66 75 60 N4105ZLD 4.95 Electrical ASG224F 2600*1000*1250 1420
    GR55(S) 55 44 50 40 R4105ZD1 4.95 Mechanical ASG224D 2290*1050*1280 1179
    GR69(S) 69 55 62 50 R4105ZD1 4.85 Electrical ASG224E 2600*1000*1250 1400
    GR69(S) 69 55 62 50 R4105ZLDS1 4.85 Mechanical ASG224E 2600*1000*1250 1400
    GR83(S) 83 66 75 60 R4105ZLDS1 4.95 Electrical ASG224F 2600*1000*1250 1420
    GR69(S) 69 55 62 50 R4105BZDS1 4.85 Mechanical ASG224E 2600*1000*1250 1400
    GR83(S) 83 66 75 60 R4105BZLDS1 4.95 Electrical ASG224F 2600*1000*1250 1420
    GR88(S) 88 70 80 64 R6105ZDS1 4.95 Electrical ASG224G 2600*1000*1250 1420
    GR103(S) 103 82 94 75 R6105ZDS1 7 Electrical ASG274C 2900*1080*1650 1700
    GR124(S) 124 99 113 90 R6105ZLDS1 6.75 Electrical ASG274D 2930*1090*1680 1800
    GR138(S) 138 110 125 100 R6 l 05AZLDS1 6.75 Electrical ASG274E 3120*1130*1750 1752
    GR165(S) 165 132 150 120 R6105BZLDS1 7 Electrical ASG274F 3120*1130*1750 1845
    GR206(S) 206 165 188 150 R6110ZLDS 7.41 Electrical ASG274G 3190*1130*1780 1965
    GR220(S) 220 176 200 160 6126-68D 7.8 Electrical ASG274H 3300*1130*1800 2016
    GR248(S) 248 198 225 180 6126-42D 8.1 Electrical ASG274J 3300*1240*1800 2400
    GR275(S) 275 220 250 200 6126-260D 8.9 Electrical ASG274K 3600*1240*1800 2450
    GR303(S) 303 242 275 220 6126-275D 9.3 Electrical ASG314C 3900*1240*1800 2500
    GR358(S) 358 286 325 260 STD12D-308 10.6 Electrical ASG314D 4400*1450*2250 2750



    Inquiry Us





    Related Products

    YUCHAI Series (silent type)

    YUCHAI Series (silent type)

    MC Series Single-Phase Capacitor Start Asynchronous Induction Motor

    MC Series Single-Phase Capacitor Start Asynchronous Induction Motor

    KUBOTA Series (open type)

    KUBOTA Series (open type)

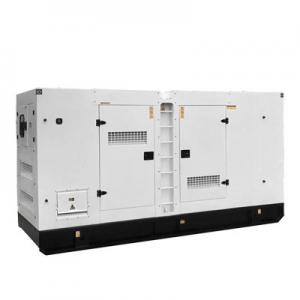

    LOVOL Series (silent type)
