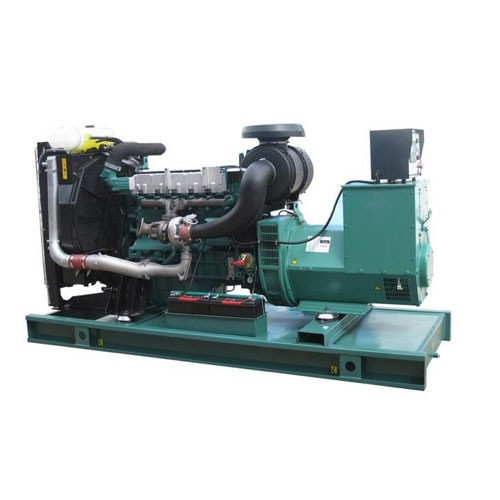

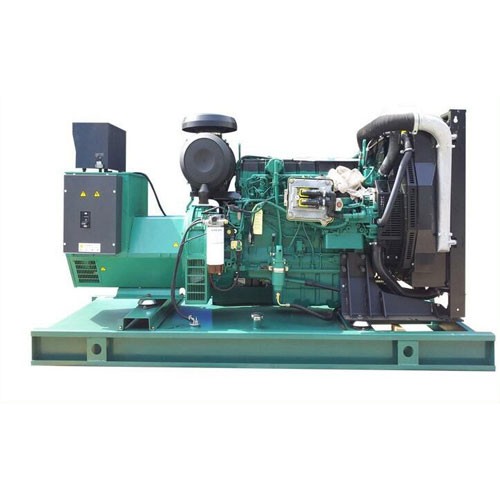

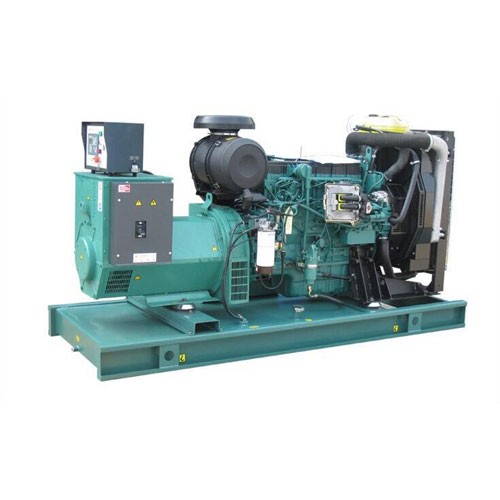

LOVOL Series (open type)

  • Product Item：generator-31
  • Diesel generator set
  • Power by FAWDE
    • LOVOL DIESEL GENERATOR SET
    Inquiry Send Email

    Description


    Diesel generator set technical data

    1.Generator Set

    Integrated structure, base frame with high-strength steel, Genset connected with full suspension shock absorber design, good damping effect and small shake.

    Diesel: choice LOVOL diesel, 24V/12V DC electric start, with tank closed water cycle fan cooling.

    Unit equipped with base daily tank or split tank (above 360KW unit), to meet the unit more than 6 hours of continuous full load.

    Genset attach muffler, corrugated absorber and simple installation materials, configure the base shock absorber, configuration of electric monitoring instrument and diesel operation instrument,

    Genset with MCCB circuit breakers, with short circuit, overload protection function.

    Genset output power to meet the following environmental conditions: Altitude: <1000m Ambient temperature:40°C

    2.Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.

    3.Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.

    4.Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.

    5.Genset emission standards to meet Euro I emission standards

    6.Optional configuration: automatically load the output cabinet, the ATS automatic conversion cabinet and The AMF mains voltage detection module, water (oil) heater, Sound Proof, trailers mobile type etc.

    7.Warranty period: from the date of out of warehouse for one year or 1000 hours (whichever comes first). It Does not include the daily wear and tear parts and human misuse and neglect of maintenance.


    ASG-LOVOL Series:50HZ
    Model Specification 50HZ
    400-230V     		General specifications Alternator Dimensions Weight
    ESP PRP Engine type Consumption 100% Gov MODEL
    KVA KW KVA KW L/H mm kg
    GL25 25 20 22 18 1003G 6.1 Mechanical ASG184F 2600*1000*1380 920
    GL31 31 24 28 22 1003G 6.1 Mechanical ASG184F 2700*1030*1410 1080
    GL35 35 28 32 25 1003G 6.1 Mechanical ASG184G 2700*1030*1410 1100
    GL41 41 33 37 30 1004G 6.9 Mechanical ASG224C 2800*1030*1410 1180
    GL44 44 35 40 32 1004G 6.9 Mechanical ASG224C 2700*1030*1410 1200
    GL47 47 37 42 34 1004G 6.9 Mechanical ASG224C 2700*1030*1410 1200
    GL41 41 33 37 30 1003TG 6.9 Mechanical ASG224C 2700*1030*1410 1360
    GL44 44 35 40 32 1003TG 6.9 Mechanical ASG224C 2800*1030*1410 1450
    GL47 47 37 42 34 1003TG 6.9 Mechanical ASG224G 2800*1030*1410 1550
    GL55 55 44 50 40 1003TG 6.9 Mechanical ASG224D 3200*1130*1700 1700
    GL66 66 52 60 48 1004TG 15.9 Mechanical ASG224D 3200*1130*1700 1700
    GL80 80 64 72 58 1004TG 15.9 Mechanical ASG224E 3360*1230*1800 2000
    GL94 94 75 85 68 1006TG1A 20 Mechanical ASG224F 3400*1330*1900 2250
    GL110 110 88 100 80 1006TG2A 20 Mechanical ASG274C 3460*1380*1960 2300
    GL138 138 110 125 100 1006TAG 28 Electrical ASG274D 3500*1380*1960 2380
    GL149 149 119 135 108 1006TAG 28 Electrical ASG274E 3500*1380*1960 2400
    GL165 165 132 150 120 1106C-P6TAG2 28 Electrical ASG274E 3600*1480*2000 2490
    GL178 178 143 162 130 1106C-P6TAG3 28 Electrical ASG274F 3600*1480*2000 2530
    GL200 200 160 182 146 1106C-P6TAG4 25.6 Electrical ASG274G 3700*1580*2060 2600

    ASG-LOVOL Series:60HZ
    Model Specification 60HZ
    400-230V     		General specifications Alternator Dimensions Weight
    ESP PRP Engine type Consumption 100% Gov MODEL
    KVA KW KVA KW L/H mm kg
    GL32 32 25 29 23 1003G 5.8 Mechanical ASG184F 2600*930*1310 1080
    GL34 34 28 31 25 1003G 6.1 Mechanical ASG184G 2600*930*1310 1100
    GL41 41 33 38 30 1003TG 5.2 Mechanical ASG224C 2700*930*1310 1180
    GL50 50 40 45 36 1003TG 5.6 Mechanical ASG224C 2730*980*1310 1200
    GL55 55 44 50 40 1003TG 6.9 Mechanical ASG224D 2730*980*1310 1200
    GL66 66 53 60 48 1004TG 9.9 Mechanical ASG224E 2760*980*1360 1360
    GL76 76 61 69 55 1004TG 9.9 Mechanical ASG224F 2700*1030*1310 1450
    GL94 94 75 85 68 1004TG 11.3 Mechanical ASG224G 2700*1030*1310 1550
    GL116 116 92 105 84 1006TG1A 15.9 Mechanical ASG274C 3100*1050*1600 1700
    GL138 138 110 125 100 1006TG2A 20 Mechanical ASG274C 3110*1080*1700 1700
    GL151 151 121 138 110 1006TAG 25.6 Electrical ASG274D 3260*1130*1700 2000
    GL176 176 141 160 128 1006TAG 28 Electrical ASG274E 3360*1230*1800 2250
