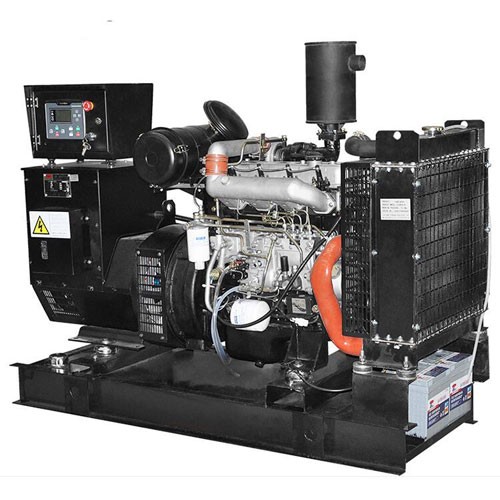

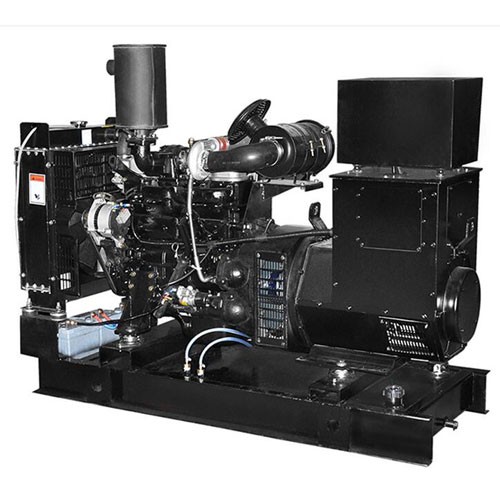

ISUZU Series (open type) ISUZU Series (open type) ISUZU Series (open type)

ISUZU Series (open type)

  • Product Item:generator-19
  • Diesel generator set
  • Power by ISUZU
  • Inquiry Send Email

    Description


    Diesel generator set technical data

    1.Generator Set

    Integrated structure, base frame with high-strength steel, Genset connected with full suspension shock absorber design, good damping effect and small shake.

    Diesel: choice ISUZU diesel, 24V/12V DC electric start, with tank closed water cycle fan cooling.

    Unit equipped with base daily tank or split tank (above 360KW unit), to meet the unit more than 6 hours of continuous full load.

    Genset attach muffler, corrugated absorber and simple installation materials, configure the base shock absorber, configuration of electric monitoring instrument and diesel operation instrument,

    Genset with MCCB circuit breakers, with short circuit, overload protection function.

    Genset output power to meet the following environmental conditions: Altitude: <1000m Ambient temperature:40°C

    2.Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.

    3.Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.

    4.Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.

    5.Genset emission standards to meet Euro I emission standards

    6.Optional configuration: automatically load the output cabinet, the ATS automatic conversion cabinet and The AMF mains voltage detection module, water (oil) heater, Sound Proof, trailers mobile type etc.

    7.Warranty period: from the date of out of warehouse for one year or 1000 hours (whichever comes first). It Does not include the daily wear and tear parts and human misuse and neglect of maintenance.

    ASG-AOLING ISUZU Series:50HZ
    Model Specification 50HZ
    400-230V
    General specifications Alternator Dimensions Weight (kg)
    ESP PRP Engine type Consumption 100% Gov
    KVA KW KVA KW L/H
    GI27 27 22 25 20 4JB1 4.6 Mechanical ASG184F 1850*590*890 740
    GI28 33 26 30 24 4JB1T 4.8 Mechanical ASG184G 1950*680*980 740
    GI29 42 33 38 30 4JB1TT 5.4 Electrical ASG184H 2050*800*1050 1370
    GI30 47 37 42.5 34 4JB1T-S 11.3 Electrical ASG224C 2050*900*1120 1370
    GI31 55 44 50 40 4BD1-Z 12 Electrical ASG224D 2200*980*1180 1470
    GI32 66 52.8 60 48 4BG1-Z 14.5 Electrical ASG224E 2400*1010*1200 1370

    ASG-AOLING ISUZU Series:60HZ
    Model Specification 60HZ
    400-230V
    General specifications Alternator Dimensions Weight (kg)
    ESP PRP Engine type Consumption 100% Gov
    KVA KW KVA KW L/H
    GI27 27 22 25 20 4JB1 4.6 Mechanical ASG184F 1850*590*890 740
    GI28 33 26 30 24 4JB1T 4.8 Mechanical ASG184G 1950*680*980 740
    GI29 42 33 38 30 4JB1TT 5.4 Electrical ASG184H 2050*800*1050 1370
    GI30 47 37 42.5 34 4JB1T-S 11.3 Electrical ASG224C 2050*900*1120 1370
    GI31 55 44 50 40 4BD1-Z 12 Electrical ASG224D 2200*980*1180 1470
    GI32 66 52.8 60 48 4BG1-Z 14.5 Electrical ASG224E 2400*1010*1200 1370



    Inquiry Us





    Related Products

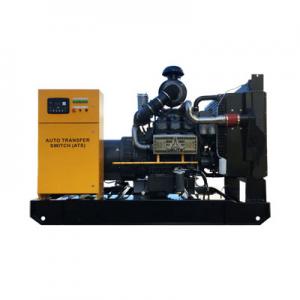

    DEUTZ Series (silent type)

    DEUTZ Series (silent type)

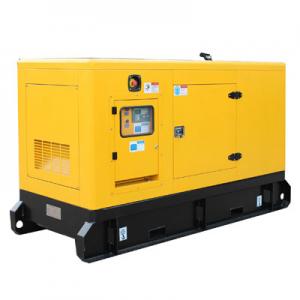

    YUCHAI Series (open type)

    YUCHAI Series (open type)

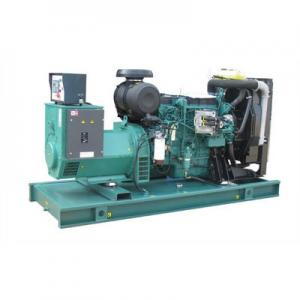

    LOVOL Series (open type)

    LOVOL Series (open type)

    Weichai Series (open type)

    Weichai Series (open type)

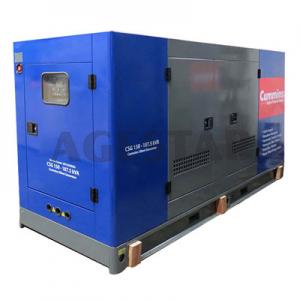

    CUMMINS Series (open type)
