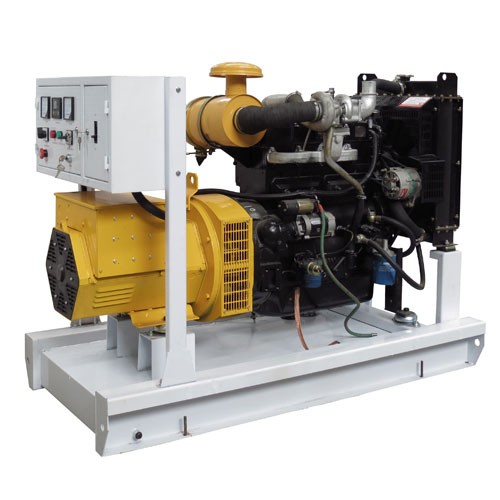

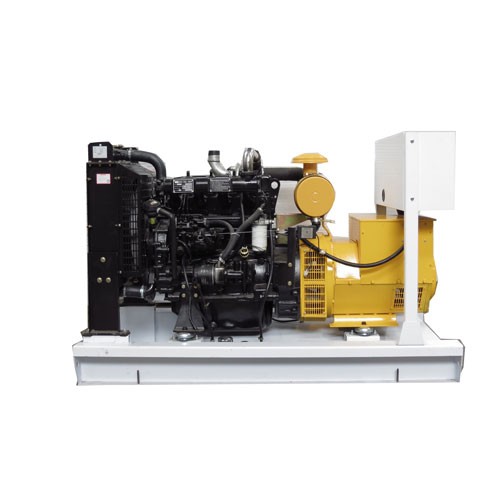

Ricardo Series (open type) Ricardo Series (open type)

Ricardo Series (open type)

  • Product Item:generator-24
  • open type generator set
  • power by Ricardo
  • 自定义参数 : 后台可修改
  • 自定义参数 : 后台可修改
  • Ricardo series genset  , open type genset
    Inquiry Send Email

    Description

    ASG-Ricardo Series:50HZ
    Model Specification 50HZ
    400-230V
    General specifications Alternator Dimensions Weight/kg
    ESP PRP Engine type Consumption 100% Gov
    KVA KW KVA KW L/H
    GR11 11 9 10 8 Y480BD 1.81 Mechanical ASG164B 1550*810*930 359
    GR14 14 11 13 10 Y480BD 1.81 Mechanical ASG164C 1550*810*930 380
    GR17 17 13 15 12 Y480BD 1.81 Mechanical ASG164D 1550*810*930 390
    GR21 21 17 19 15 Y485BD 3.61 Mechanical ASG184ES 1500*810*990 467
    GR25 25 20 23 18 Y485BZD 3.61 Mechanical ASG184E 1500*810*990 487
    GR28 28 22 25 20 Y485BZD 3.61 Mechanical ASG184F 1500*810*990 490
    GR28 28 22 25 20 Y485BZLD 3.85 Mechanical ASG184F 1500*810*990 490
    GR33 33 26 30 24 Y485BZLD 3.85 Mechanical ASG184G 1650*750*1250 700
    GR28 28 22 25 20 N4100DS-26 3.85 Mechanical ASG184F 1500*810*990 490
    GR33 33 26 30 24 N4100DS-30 3.85 Mechanical ASG184G 1650*750*1250 700
    GR41 41 33 38 30 N41050S-38 3.85 Mechanical ASG184H 1750*750*1250 790
    GR55 55 44 50 40 N4105DS-46 3.85 Mechanical ASG224D 1750*750*1250 840
    GR55 55 44 50 40 N4105ZD 3.85 Mechanical ASG224D 1750*750*1250 840
    GR69 69 55 63 50 N4105ZD 4.33 Electrical ASG224E 1850*800*1250 900
    GR69 69 55 63 50 N4105ZLD 4.33 Mechanical ASG224E 1850*800*1250 900
    GR83 83 66 75 60 N4105ZLD 4.95 Electrical ASG224F 1850*800*1250 920
    GR55 55 44 50 40 R4105ZD1 4.95 Mechanical ASG224D 1750*750*1250 840
    GR69 69 55 63 50 R4105ZD1 4.85 Electrical ASG224E 1850*800*1250 900
    GR69 69 55 63 50 R4105ZLDS1 4.85 Mechanical ASG224E 1850*800*1250 900
    GR83 83 66 75 60 R4105ZLDS1 4.95 Electrical ASG224F 1850*800*1250 920
    GR69 69 55 63 50 R4105BZDS1 4.85 Mechanical ASG224E 1850*800*1250 900
    GR83 83 66 75 60 R4105BZLDS1 4.95 Electrical ASG224F 1850*800*1250 920
    GR88 88 70 80 64 R6105ZDS1 4.95 Electrical ASG224G 1850*800*1250 920
    GR103 103 83 94 75 R6105ZDS1 7 Electrical ASG274C 1850*810*1250 1150
    GR124 124 99 113 90 R6105ZLDS1 6.75 Electrical ASG274D 1950*880*1280 1190
    GR138 138 110 125 100 R6 l 05AZLDS1 6.75 Electrical ASG274E 2240*960*1320 1300
    GR165 165 132 150 120 R6105BZLDS1 7 Electrical ASG274F 2240* 960*1320 1400
    GR206 206 165 188 150 R6110ZLDS 7.41 Electrical ASG274G 2550*1050*1670 1580
    GR220 220 176 200 160 6126-68D 7.8 Electrical ASG274H 2550*1050*1670 1580
    GR248 248 198 225 180 6126-42D 8.1 Electrical ASG274J 2550*1050*1670 1650
    GR275 275 220 250 200 6126-260D 8.9 Electrical ASG274K 2550*1050*1670 1700
    GR303 303 242 275 220 6126-275D 9.3 Electrical ASG314C 3000*1150*1980 2400
    GR358 358 286 325 260 STD12D-308 10.6 Electrical ASG314D 3400*1150*1980 2450
    ASG-Ricardo Series:60HZ
    Model Specification 60HZ
    400-230V
    General specifications Alternator Dimensions Weight/kg
    ESP PRP Engine type Consumption 100% Gov
    KVA KW KVA KW L/H
    GR11 11 9 10 8 Y480BD 1.81 Mechanical ASG164B 2050*850*1150 359
    GR14 14 11 13 10 Y480BD 1.81 Mechanical ASG164C 2050*850*1150 380
    GR17 17 13 15 12 Y480BD 1.81 Mechanical ASG164D 2050*850*1150 390
    GR21 21 16 19 15 Y485BD 3.61 Mechanical ASG184ES 2030*9000*1150 467
    GR25 25 20 23 18 Y485BZD 3.61 Mechanical ASG184E 2030*9000*1150 487
    GR28 28 22 25 20 Y485BZD 3.61 Mechanical ASG184F 2030*9000*1150 490
    GR28 28 22 25 20 Y485BZLD 3.85 Mechanical ASG184F 2030*9000*1150 490
    GR33 33 26 30 24 Y485BZLD 3.85 Mechanical ASG184G 2280*1000*1250 700
    GR28 28 22 25 20 N4100DS-26 3.85 Mechanical ASG184F 2030*9000*1150 490
    GR33 33 26 30 24 N4100DS-30 3.85 Mechanical ASG184G 2280*1000*1250 700
    GR41 41 33 38 30 N41050S-38 3.85 Mechanical ASG184H 2290*1030*1260 790
    GR55 55 44 50 40 N4105DS-46 3.85 Mechanical ASG224D 2290*1050*1280 840
    GR55 55 44 50 40 N4105ZD 3.85 Mechanical ASG224D 2290*1050*1280 840
    GR69 69 55 62 50 N4105ZD 4.33 Electrical ASG224E 2600*1000*1250 900
    GR69 69 55 62 50 N4105ZLD 4.33 Mechanical ASG224E 2600*1000*1250 900
    GR83 83 66 75 60 N4105ZLD 4.95 Electrical ASG224F 2600*1000*1250 920
    GR55 55 44 50 40 R4105ZD1 4.95 Mechanical ASG224D 2290*1050*1280 840
    GR69 69 55 62 50 R4105ZD1 4.85 Electrical ASG224E 2600*1000*1250 900
    GR69 69 55 62 50 R4105ZLDS1 4.85 Mechanical ASG224E 2600*1000*1250 900
    GR83 83 66 75 60 R4105ZLDS1 4.95 Electrical ASG224F 2600*1000*1250 920
    GR69 69 55 62 50 R4105BZDS1 4.85 Mechanical ASG224E 2600*1000*1250 900
    GR83 83 66 75 60 R4105BZLDS1 4.95 Electrical ASG224F 2600*1000*1250 920
    GR88 88 70 80 64 R6105ZDS1 4.95 Electrical ASG224G 2600*1000*1250 920
    GR103 103 82 94 75 R6105ZDS1 7 Electrical ASG274C 2900*1080*1650 1150
    GR124 124 99 113 90 R6105ZLDS1 6.75 Electrical ASG274D 2930*1090*1680 1190
    GR138 138 110 125 100 R6 l 05AZLDS1 6.75 Electrical ASG274E 3120*1130*1750 1300
    GR165 165 132 150 120 R6105BZLDS1 7 Electrical ASG274F 3120*1130*1750 1400
    GR206 206 165 188 150 R6110ZLDS 7.41 Electrical ASG274G 3190*1130*1780 1580
    GR220 220 176 200 160 6126-68D 7.8 Electrical ASG274H 3300*1130*1800 1580
    GR248 248 198 225 180 6126-42D 8.1 Electrical ASG274J 3300*1240*1800 1650
    GR275 275 220 250 200 6126-260D 8.9 Electrical ASG274K 3600*1240*1800 1700
    GR303 303 242 275 220 6126-275D 9.3 Electrical ASG314C 3900*1240*1800 2400
    GR358 358 286 325 260 STD12D-308 10.6 Electrical ASG314D 4400*1450*2250 2450




    Inquiry Us





    Related Products

    FAWDE Series (open type)

    FAWDE Series (open type)

    YL series single phase Dual capacitor start & run asynchronous motor

    YL series single phase Dual capacitor start & run asynchronous motor

    WEICHAI Series (silent type)

    WEICHAI Series (silent type)

    DEUTZ Series (silent type)

    DEUTZ Series (silent type)

    ML Series Single-Phase Capacitor Start & Run Asynchronous Induction Motor

    ML Series Single-Phase Capacitor Start & Run Asynchronous Induction Motor

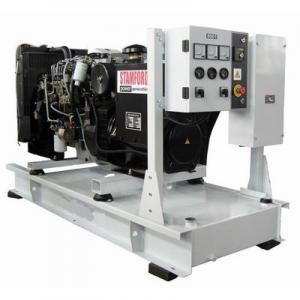

    PERKINS Series (open type)
